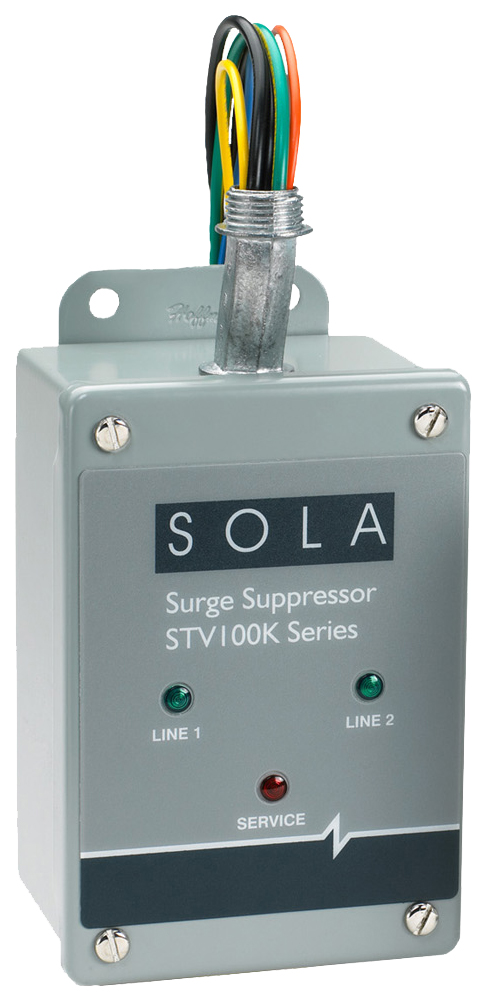

SolaHD STV100K Series Hardwired Surge Protector

The SolaHD STV100K Series Hardwired Surge Protector is designed for installation at the service entrance, branch panel, or a dedicated sensitive electronic load. These units feature all mode protection, LED, and audible alarm status indication, sinewave tracking and form C dry contacts. The STV100K Series also contains high levels of safety built into the product including thermal fusing and a fault current fusing level of 100 kAIC.

Applications
Distribution panels (up to 800A)
Branch, lighting, and control panels
Factory automation installations
Dedicated industrial equipment

Features

• Low clamping levels for more effective protection
• 100 kAIC fault current fusing level provides safety and NEC conformance
• LED status, audible alarms, and form C dry contacts
• Compact, rugged metal
• cULus Listed
  • UL 1449, type 2 locations
  • UL Listed/NEMA type 12 enclosure
  • CSA C22.2 No. 8, CSA IT I-IIB, TI A-24
• RoHS compliant
