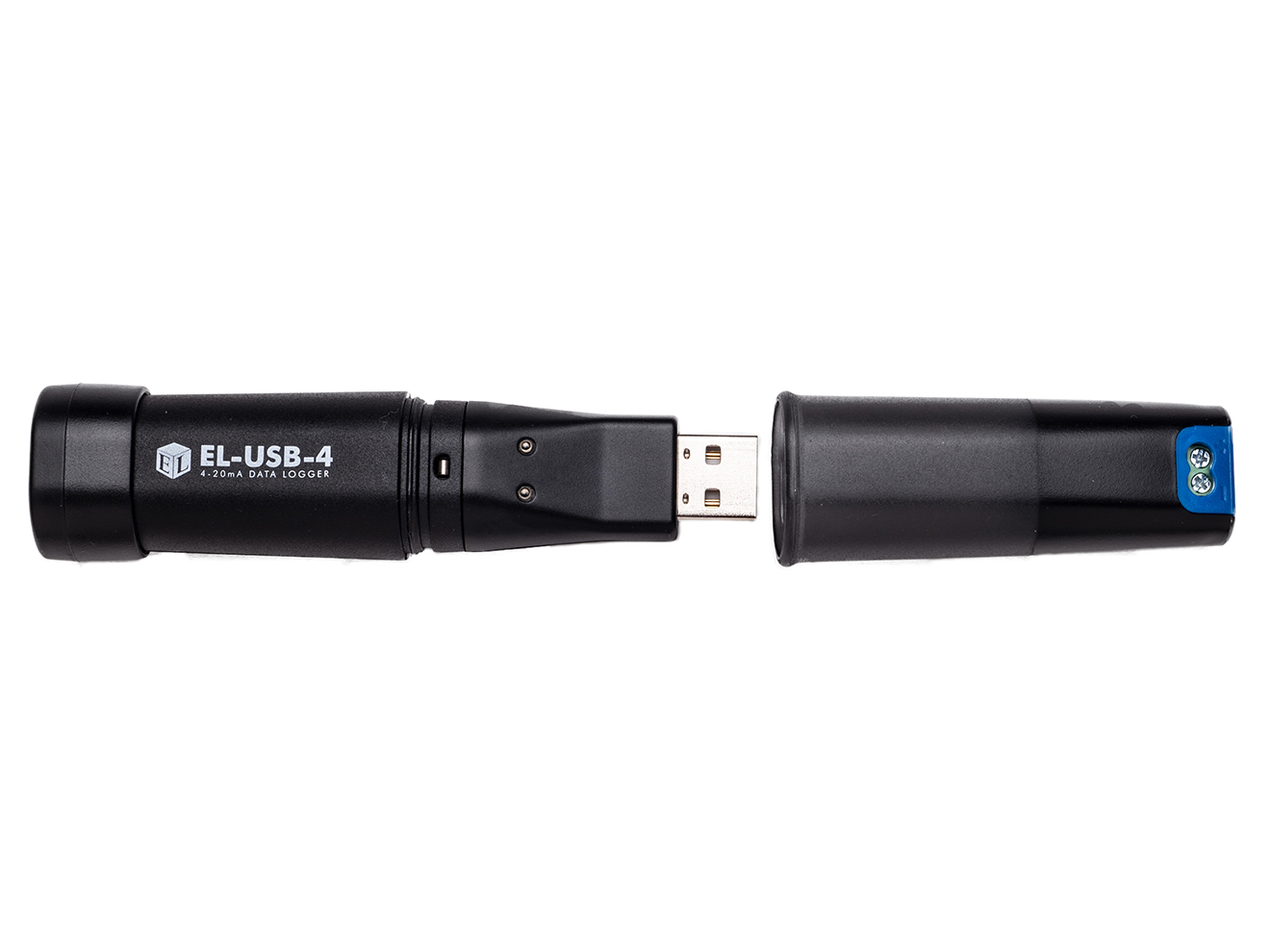

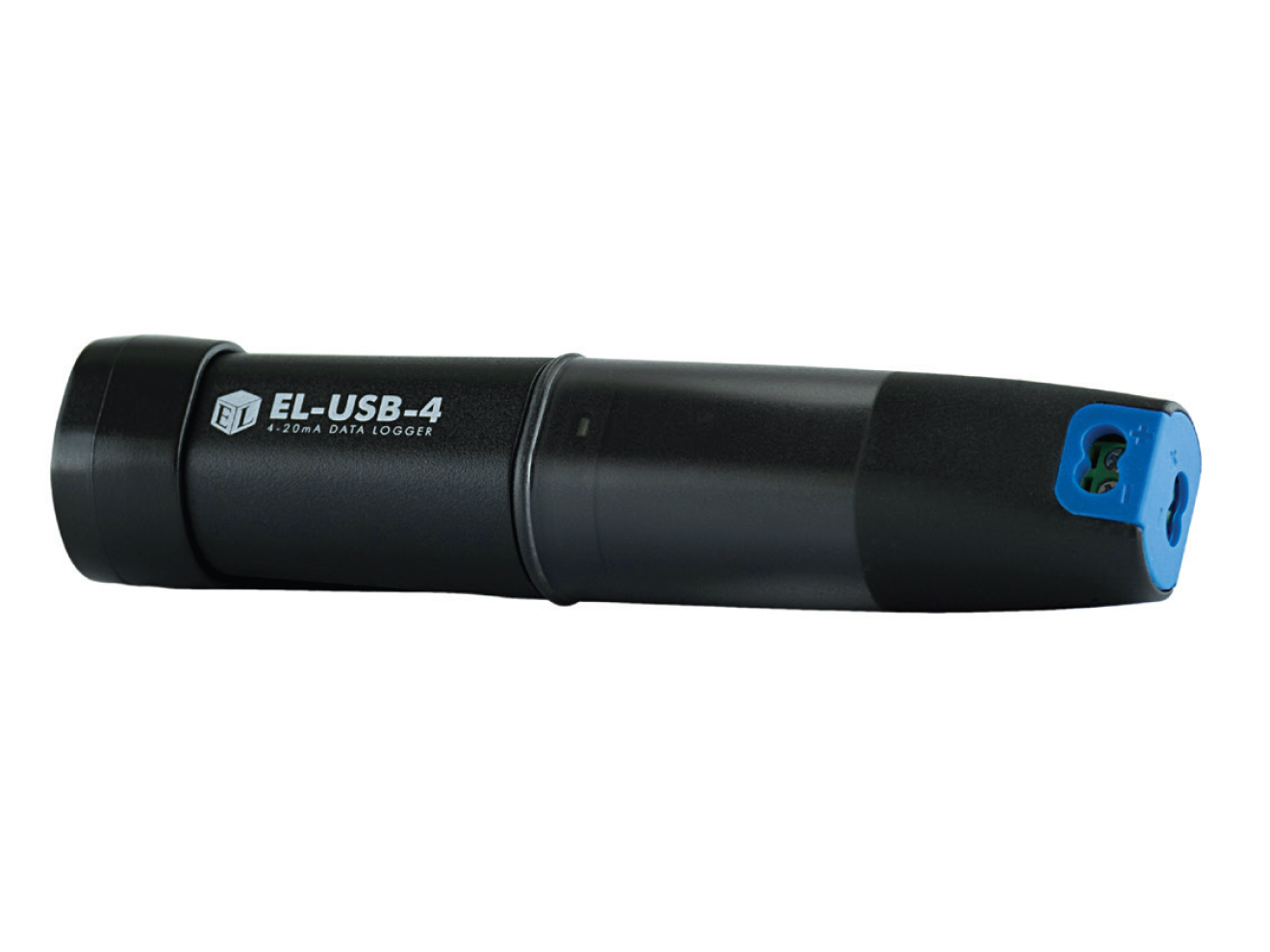

CDI Meters EL-USB-4C Data Logger

product id: 3aecdf6ebaad

InstruHub is a leading supplier and reseller of CDI Meters Flow Meters, Miscellaneous and Thermal Mass Flow Meters in Iraq, and we ship to all major cities such as Baghdad, Mosul, Basra

The CDI Meters EL-USB-4C Data Logger records the CDI Meters 5000 Series Compressed Air Flow Meters readings via the 4-20mA output. The EL-USB-4C features easy to configure settings such as alarm thresholds, logging rate, and immediate vs delayed starts. The EL-USB-4C comes with free EasyLog software that allows the collected data to be graphed, printed and exported to other in-use applications in excel, jpeg and and PDF formats.

Features

Accuracy: ±1%
Storage: 32,510 Readings
Logging rate: user selectable between 1 second & 12 hours
Operating temperature range: -35 to +80°C (-31 to +176°F)
Measurement range: 4 to 20mA DC
Internal resolution: 0.05mA DC
Input impedance: 110 Ohms
Battery life: 3 years
Status indication via red and green LEDs
Free EasyLog USB software
Includes cable for connection to CDI Meters 5000 Series Compressed Air Flow Meters
- two screw terminal connection
